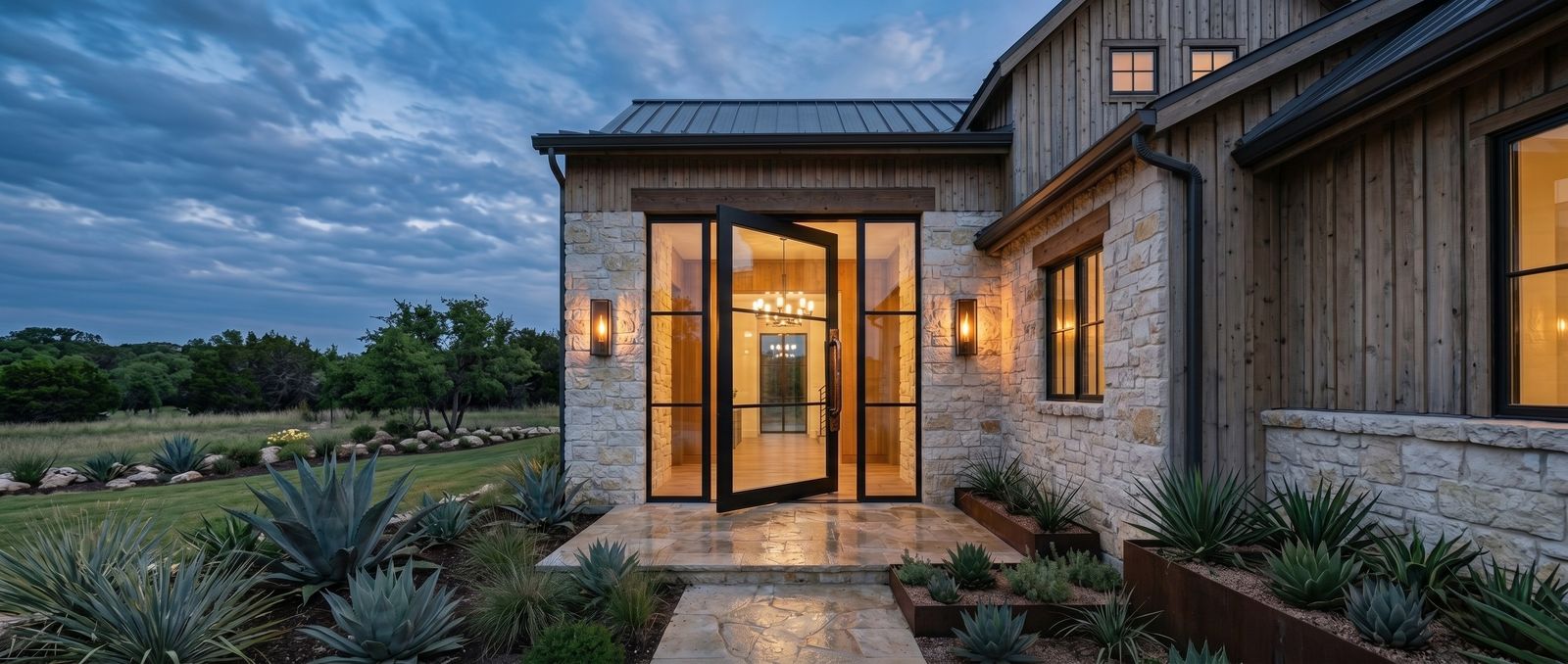

A dramatic architectural statement built on a concealed Häfele pivot system that rotates oversized panels smoothly on a central or offset axis. Thermally broken aluminum frames deliver exceptional energy performance at the front door.
Slim 2-inch frames and 24mm Low-E argon glass create a stunning, light-filled entry. The Häfele mechanism supports panels up to 450 lbs with no floor closer or overhead hardware — clean, minimalist, hardware-free.
SAVE 30–50% vs. comparable US & European manufactured products — same quality, direct from factory
Key Features
- Concealed Häfele pivot mechanism — no visible hinges
- Thermally broken aluminum with polyamide barrier
- Supports oversized panels up to 450 lbs
- 24mm Low-E argon insulated glass units
- AAMA 2604/2605 powder coat finish
- Custom sizes down to the millimeter
Technical Specifications
| Spec | Detail | Spec | Detail |
|---|---|---|---|
| Frame Material | Thermally broken aluminum, polyamide barrier | Finish | Matte black powder coat, AAMA 2604/2605 |
| Frame Profile | 2″ slim frames, mitered corners | Gaskets | EPDM dual weather stripping |
| Glass Unit | 24mm double-pane IGU, Low-E, argon | Sizes | Custom sizes down to the millimeter |
| Operation | Häfele concealed pivot mechanism | Energy | ENERGY STAR, U-factor 0.30 |
| Capacity | Up to 450 lbs, no floor closer | Warranty | 10-year frame, 5-year pivot |
